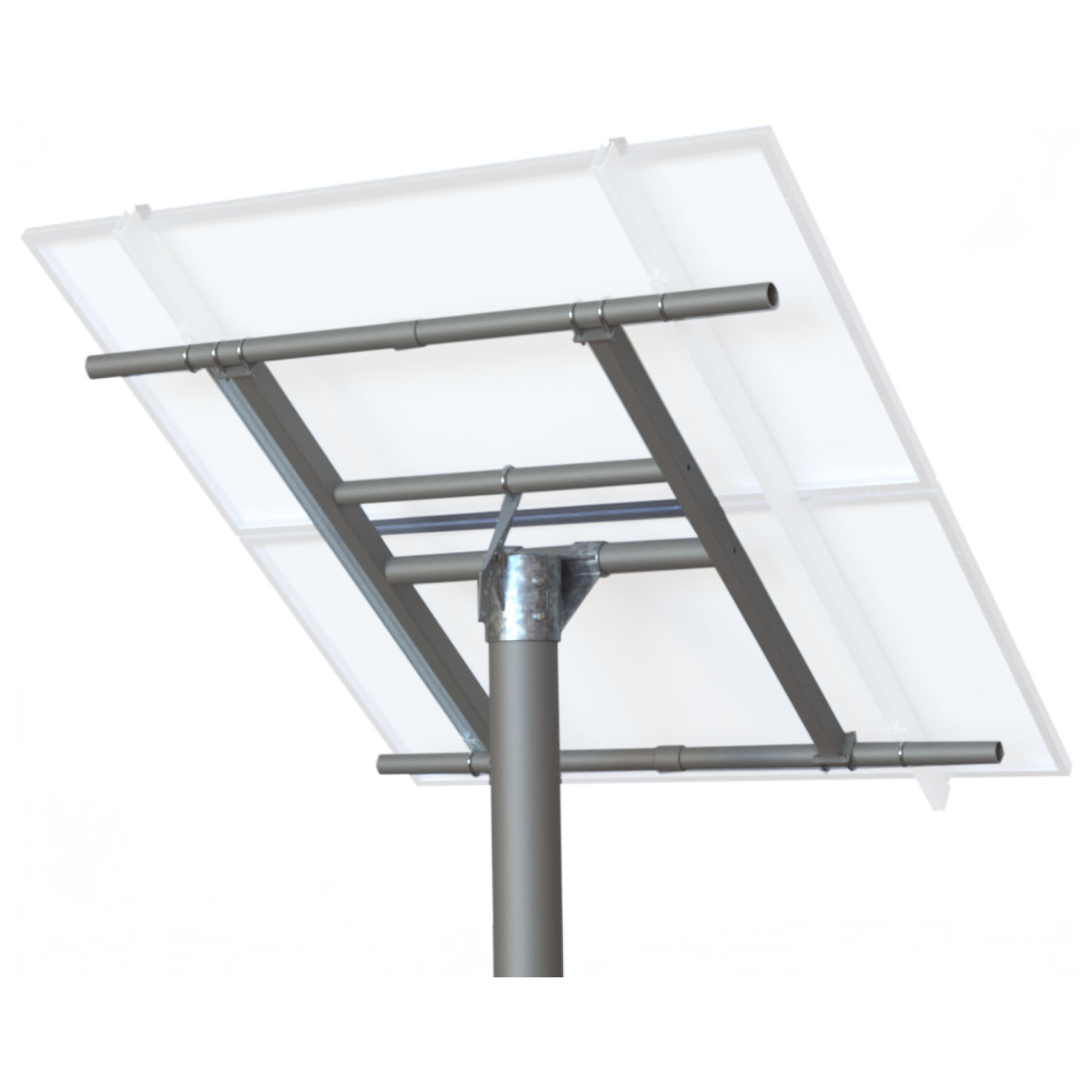

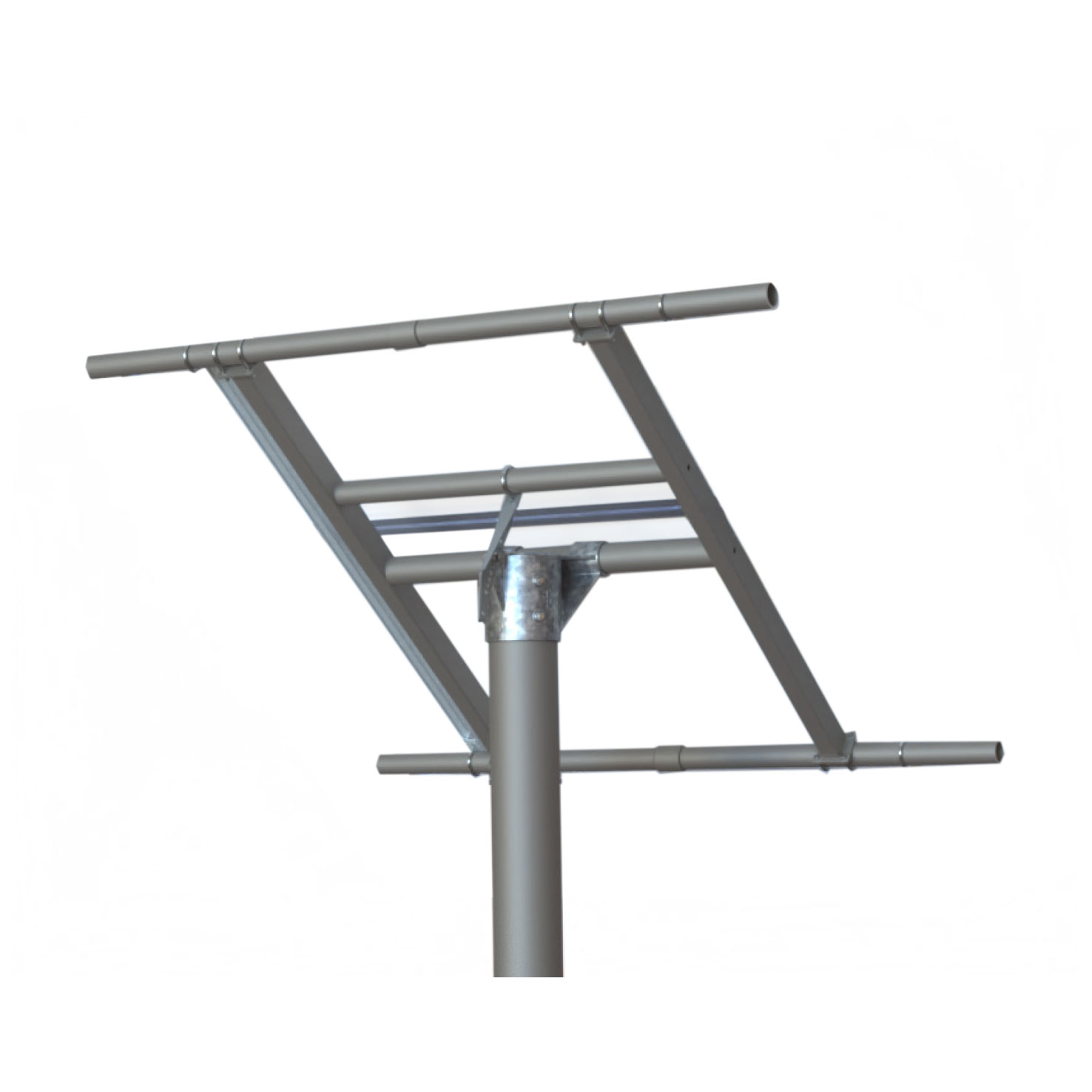

TTP-A-2-93 Top Pole Mount for 2 Modules up to 45.5" (1155mm) Wide Each

30-301-90300

Maximum Panel Width : 45.5"

Prix détail / Retail Price
CA $2862.95
Statut d'inventaire / Inventory Status
Commande spéciale 2-4 semaines

Special Order 2-4 weeks

Description

Description

Mount two modules with a total area of 60 square feet or less on a 4-IN Schedule 40 or 80 steel pole

  • Fits any module up to 45.5 inches wide with frames 30 to 40 mm deep*
  • Mounts on 4-IN Schedule-40 or Schedule-80 steel vertical post (user-supplied)
  • TTP-A-2-93 requires 2 sections of 2-IN Schedule-40 pipe. (Purchase locally or order TP-PIPEKIT-SD4)
  • No complex sizing documents or need to send module data sheets when ordering
  • Heavy-Duty Steel structure and Tamarack 3.1 aluminum module mounting rails
  • 10° to 60° tilt angle
  • UPS Shippable - total shipping weight is 160 pounds in 4 boxes
  • Engineered for up to 160 mph wind speed and 200 psf snow load

Specification

Specification

Marque / Brand
Tamarack
Garantie / Warranty
10 ans
10 years
Longueur / Length
95.3"/2420mm
Numéro de pièce/modèle / Part/Model Number
TTP-A-2-93
Poids / Weight (kg)
72.0000
