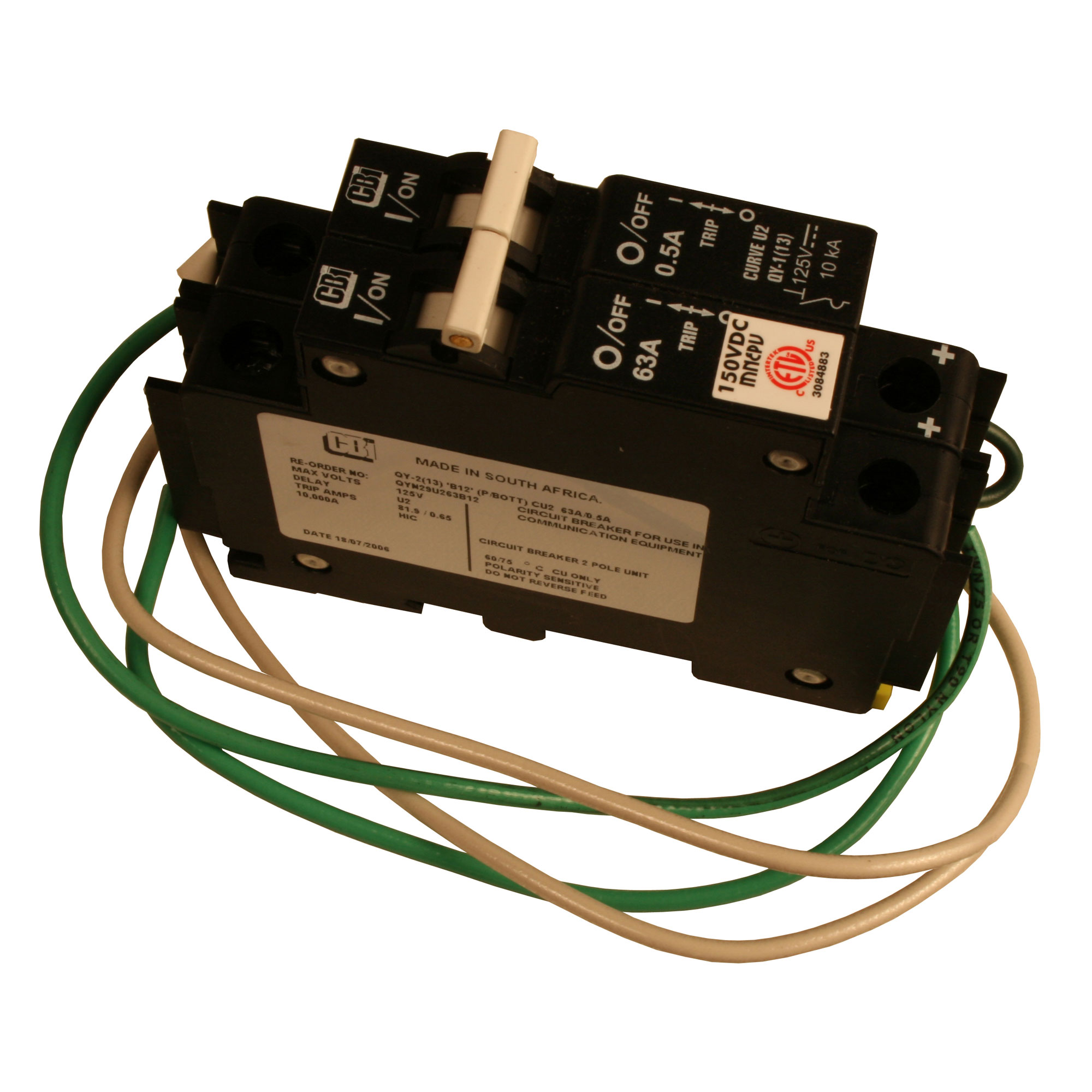

MNDC-GFP63 63A 150VDC DIN Rail Mount DC Ground Fault Protector

40-411-25344

Prix détail / Retail Price
CA $163.95
Statut d'inventaire / Inventory Status
Commande spéciale 2-3 semaines

Special Order 2-3 weeks

Description

Description

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

  • Breaker Torque Value: 20 In-Lbs (2.3NM)
  • POLARIZED
  • Width 1 inch (26mm)
  • Wire Size: 14 to 6 AWG
  • Environmental Rating - Type 1 (Indoor)
  • Listed for US & Canada when used in MidNite Solar enclosures

California Residents: Warning

Specification

Specification

Ampères / Amps
63
Marque / Brand
MidNite Solar
Hauteur / Height
3.7"/92.8mm
Garantie / Warranty
60 mois
60 months
Width
1"/26mm
Numéro de pièce/modèle / Part/Model Number
MNDC-GFP63
Marques de certifications / Regulatory Certification Marks
UL 489A, CSA C22.2
Volts
150
Poids / Weight (kg)
0.4536
Form
