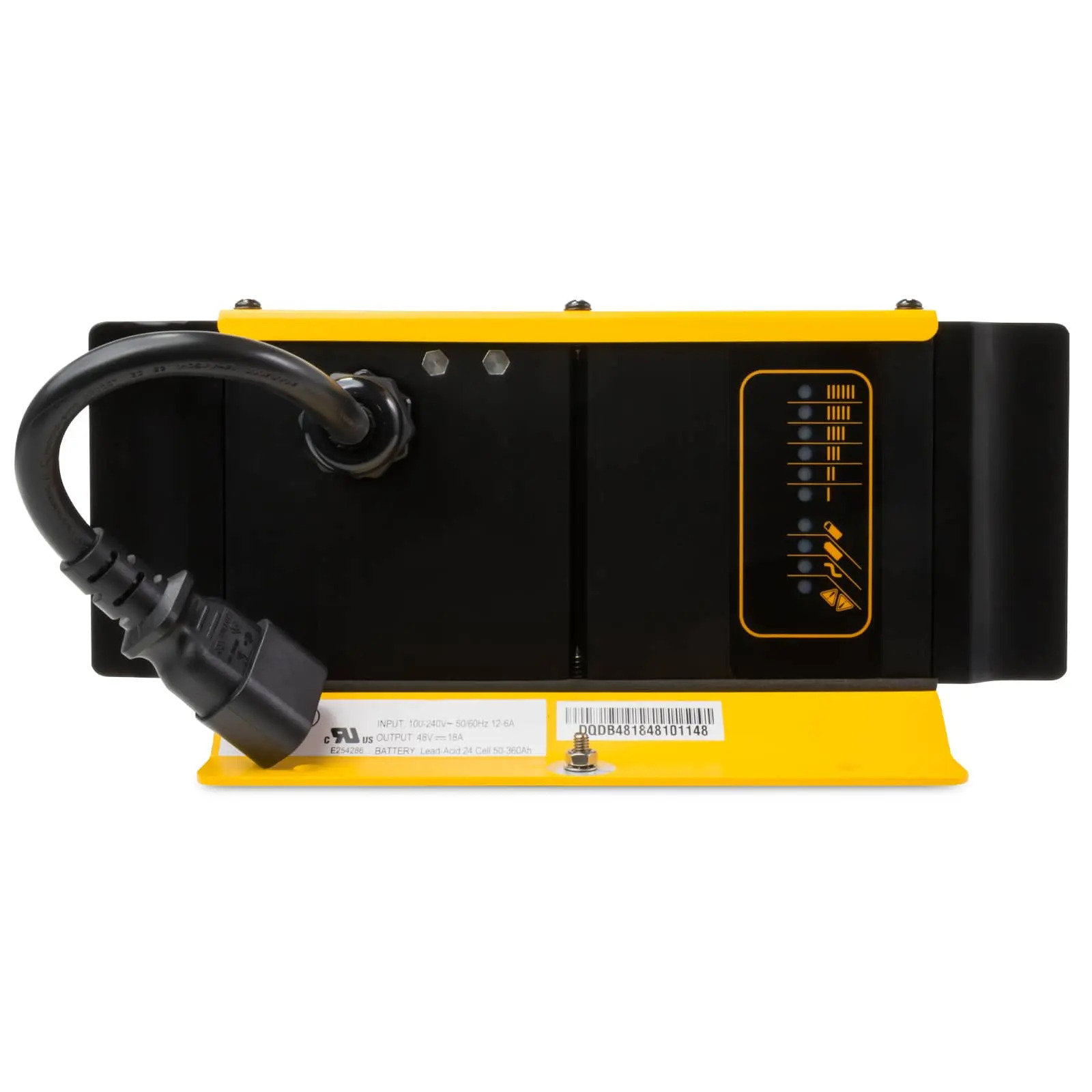

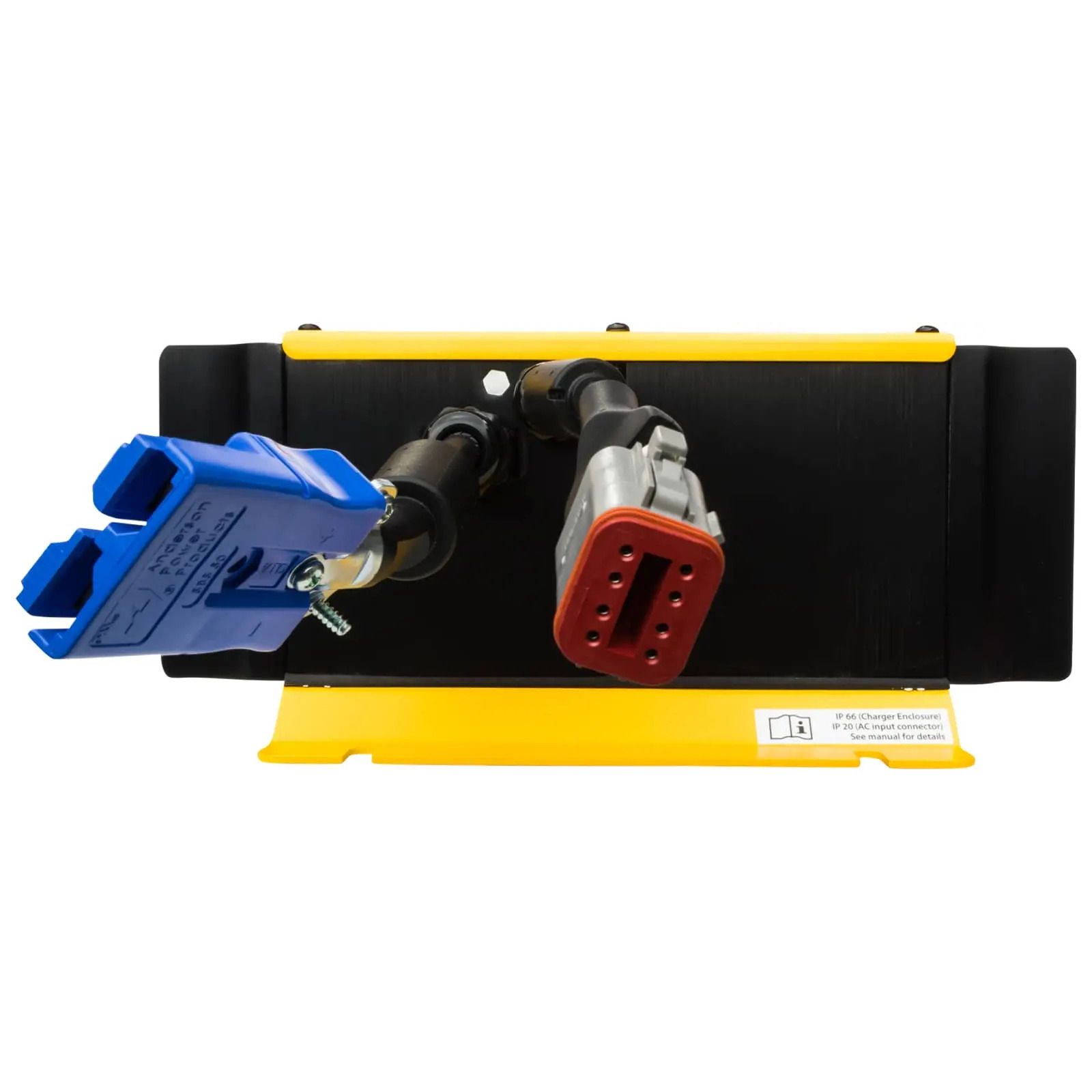

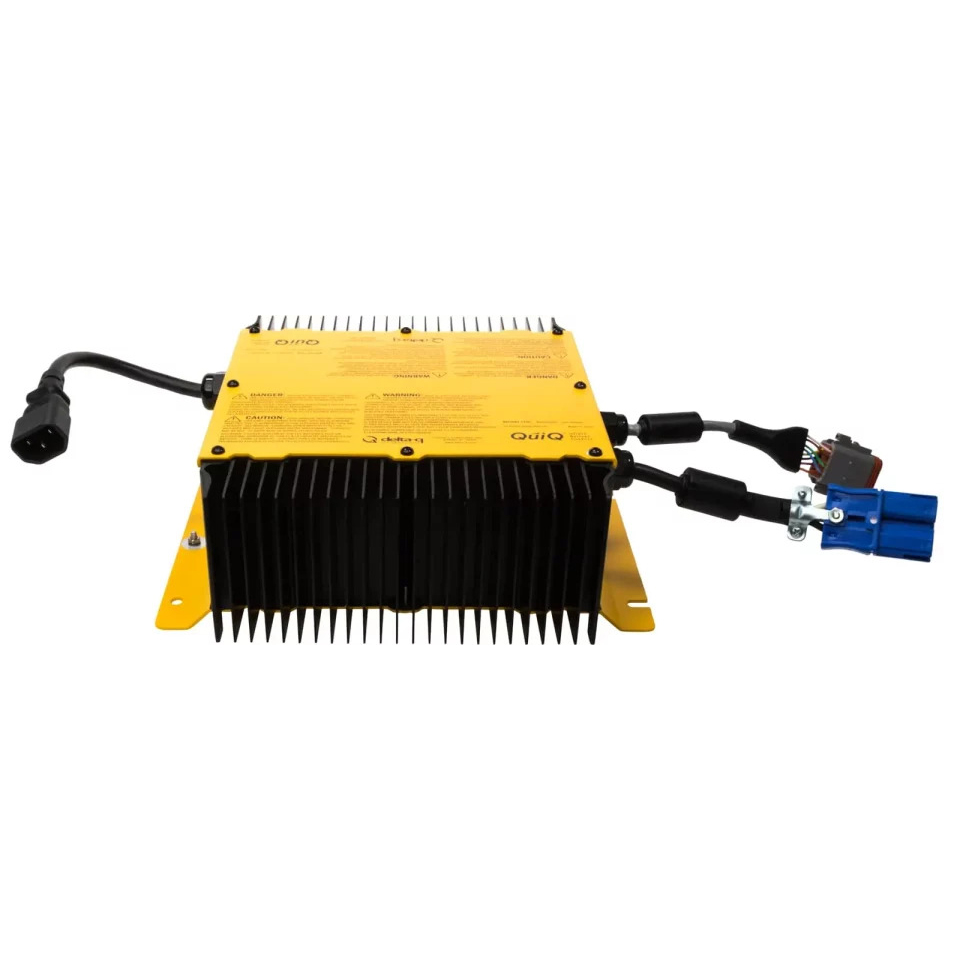

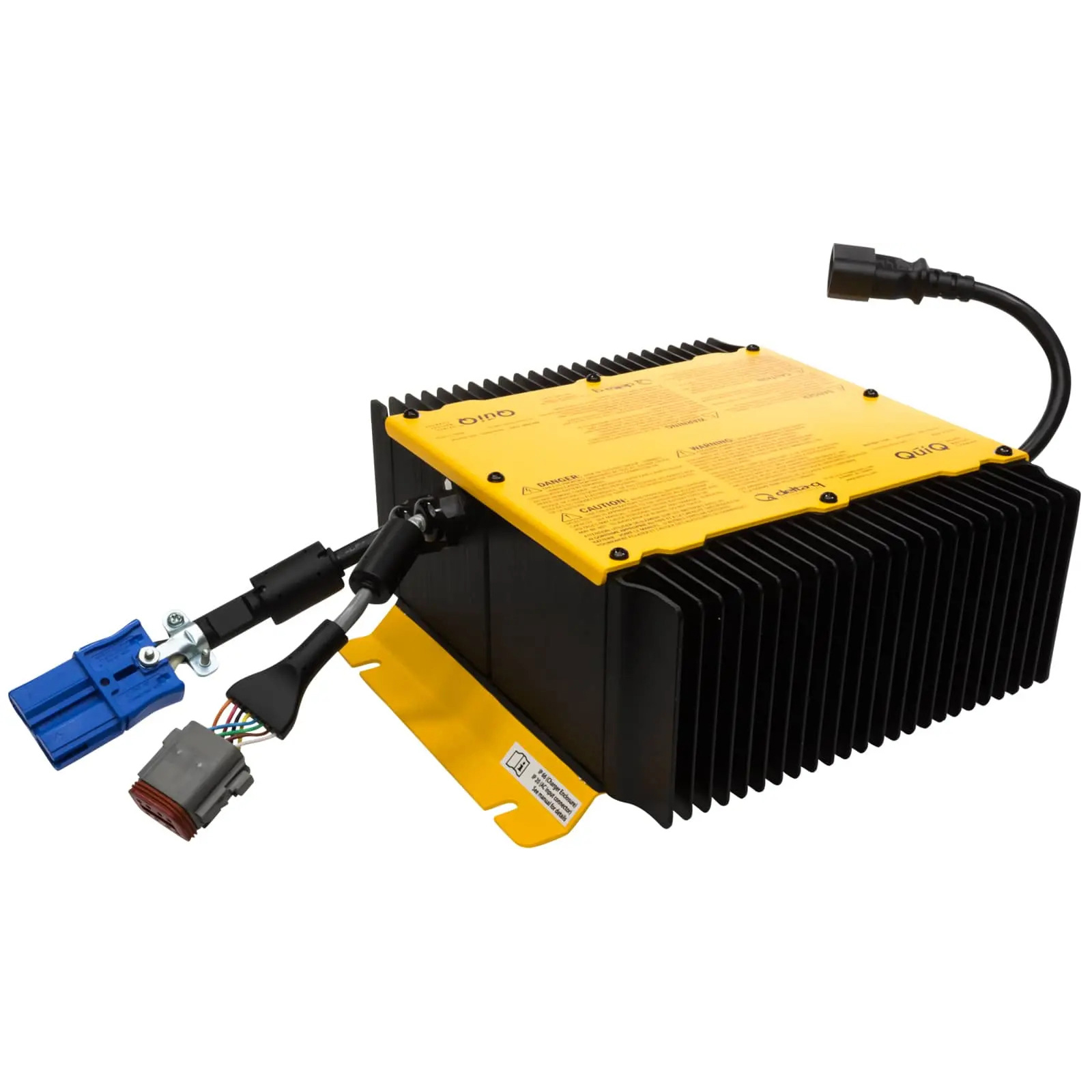

912-4854 Delta-Q QuiQ 1000 Series Industrial Battery Charger Pb/Li 48V 18A

The QuiQ 1000 is a highly durable on- or off-board charging solution that operates on any single-phase grid worldwide with a 93% peak efficiency. The charger can store 10 lab-validated charge profiles for specific brands or amp-hour ranges of lead acid and lithium motive battery packs, to assist customers in achieving battery charging flexibility. Applications include aerial work platforms, floor care machines, lift trucks, motorcycles, scooters, and utility vehicles.

Proven, Efficient Design
A proven power electronics design with 93% energy efficiency and sealed enclosure to prevent damage from high vibration, extreme ambient temperatures, water, chemicals, and dust ingress.

Charge Quality
Charge profiles to precisely charge deep-cycle lead acid and lithium batteries. Developed in Delta-Q’s battery lab to balance charge time, battery life and application requirements.

Easy to Integrate
The QuiQ 1000 can be equipped to go on- or off-board, and is the same mechanical design as all other QuiQ series chargers. Clear display to indicate charging progress and completion. Uses battery maintenance tools for integrated charge cycle and event tracking.

Global Flexibility
Global AC input to be used anywhere in the world, and has comprehensive regulatory approvals, including CEC energy efficiency standards.

Usability Features

• ­ Battery temperature monitor
• ­ Multi-color LED indicator for >80% charge, full charge, fault
• ­ Field programmable with up to 10 QuiQ charging profiles
• ­ Download charge / event data using QuiQ Programmer
